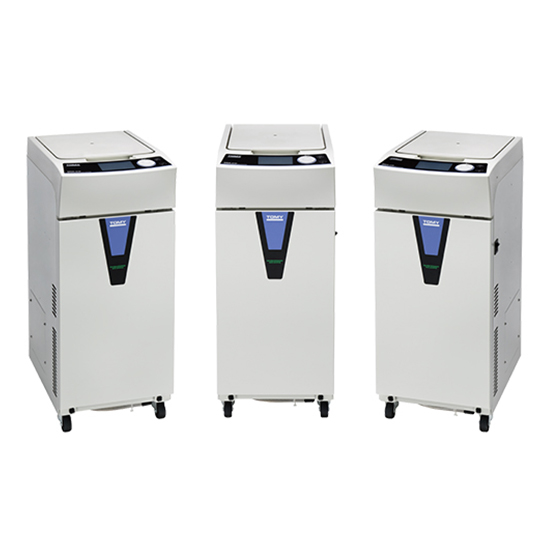

High Speed Refrigerated Micro Centrifuge MDX-310 / 210 / 110
is equipped with Rack-in-Rotor system. TOMY‘s original “Rack-in-Rotor” system, which combines a bucket shaped super lightweight rotor with a variety of drop-in racks made of resin for greater convenience and higher performance.
Rack-in-Rotor System
- Stackable, drop-in / lift-out rotor racks for racks for easy placement and removal
- A portable rack for sample tubes
- A wide variety of racks available
.
Specifications
| Model | MDX-310 | MDX-210 | MDX-110 | ||||||||||
| Maximum Speed | 15,000rpm | ||||||||||||
| Maximum RCF | 21,890G | 20,380G | 20,380G | ||||||||||
| Maximum Capacity | 50ml× 4 | 30ml × 6 | 2ml × 24 | ||||||||||
| Speed Control System | Microprocessor feedback control | ||||||||||||
| Drive Motor | Induction motor | ||||||||||||
| Data Entry | Jog Dial with entering key and Touchscreen Numeric keypad available |
||||||||||||
| Temperature Setting Range | From -9°C to +35°C (1°C increment) | ||||||||||||
| Speed Setting Range | 300 to 15,000rpm (100rpm increments) | ||||||||||||
| RCF Setting Range | 10 to Maximum RCF (Less than 300G: 10G increments, Over 300G: 100G increments) | ||||||||||||
| Time Setting Range | 10sec～99min50sec (in 10sec increments） or (Free) for a continuous run | ||||||||||||
| Safety Devices |
|
||||||||||||
| Convenient Functions |
|
||||||||||||
| Refrigerant | HFC R134a (260g) | ||||||||||||
| Power Requirements | 1-Phase AC120V 60Hz 15A 1-Phase AC220-240V 50/60Hz 10A |
||||||||||||
| Rated Current | 120V: 12A 220-240V : 7A |
120V: 12A 220-240V : 7A |
120V: 11A 220-240V : 6.5A |
||||||||||
| Dimensions | 341 W × 491 D × 823 H （Lid is open position：1138 H, table height：787 H） |
||||||||||||
| Net Weight | 62 kg | ||||||||||||
| Accessories Included |
|
||||||||||||
* Specifications and design are subject to change for improvement without prior notice. Ask for the latest specifications prior to your order and procurement.
